Nestled in the industrial heart of Safat, Kuwait, Shiraz Flanges has built a solid reputation as a trusted manufacturer and supplier of high-performance industrial components. Among their stellar offerings is the API 6BX flange, a product designed for those moments when failure is simply not an option. Engineered to meet the most rigorous international standards, these flanges represent a pledge of safety and reliability for the most challenging operational environments, embodying the company’s commitment to quality and durability.
The API 6BX flange is a heavyweight champion, meticulously crafted from high-grade forged steel with precise chemical composition to ensure superior strength. Its mechanical properties are exceptional, designed to handle extreme pressures often exceeding 20,000 psi. This robust construction provides reliable performance under severe conditions, including high temperatures and intense mechanical stress, making it an indispensable component where operational integrity is paramount.
| Material Specification Of : | API 6A 6BX Flanges |
|---|---|
| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| European Standard Flanges | JIS B2220 Flanges (5k to 30k) and KS1503 flanges |
| Russian-Standard Flanges | GOST 12820 / 12821-80, DIN, UNI, EN 1092-1 |
| South African Standard Flanges | SANSflanges And SABS flanges |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |
| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |
| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |
| Surface Finish | smooth, concentric serrated, stock |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Normal Pipe Size Of Flange | Working Pressure For Flanges (PSI) | Outside Diameter (O.D>) | Bolt Holes Number | Bolt Holes Diameter | Bolts Length | Ring Gasket For API |
|---|---|---|---|---|---|---|
| 1-13/16″ | 10,000 | 7-3/8″ | 8 | 3/4″ | 5-1/4″ | -151 |
| 1-13/16″ | 15,000 | 8-3/16″ | 8 | 7/8″ | 6″ | -151 |
| 1-13/16″ | 20,000 | 10-1/8″ | 8 | 1″ | 7-3/4″ | -151 |
| 2-1/16″ | 2,000 | 6-1/2″ | 8 | 5/8″ | 5/8″ | R-23 |
| 2-1/16″ | 3,000/5,000 | 8-1/2″ | 8 | 7/8″ | 7/8″ | R-24 |
| 2-1/16″ | 10,000 | 7-7/8″ | 8 | 3/4″ | 3/4″ | -152 |
| 2-1/16″ | 15,000 | 8-3/4″ | 8 | 7/8″ | 7/8″ | -152 |
| 2-1/16″ | 20,000 | 11-5/16″ | 8 | 1-1/8″ | 1-1/8″ | -152 |
| 2-9/16″ | 2,000 | 7-1/2″ | 8 | 3/4″ | 5-1/4″ | R-26 |
| 2-9/16″ | 3,000/5,000 | 9-5/8″ | 8 | 1″ | 7″ | R-27 |
| 2-9/16″ | 10,000 | 9-1/8″ | 8 | 7/8″ | 6-1/4″ | -153 |
| 2-9/16″ | 15,000 | 10″ | 8 | 1″ | 7″ | -153 |
| 2-9/16″ | 20,000 | 12-13/16″ | 8 | 1-1/4″ | 9-1/2″ | -153 |
| 3-1/8″ | 2,000 | 8-1/4″ | 8 | 3/4″ | 5-1/2″ | R-31 |
| 3-1/8″ | 3,000 | 9-1/2″ | 8 | 7/8″ | 6-1/4″ | R-31 |
| 3-1/8″ | 5,000 | 10-1/2″ | 8 | 1-1/8″ | 7-3/4″ | R-35 |
| 3-1/16″ | 10,000 | 10-5/8″ | 8 | 1″ | 7-1/4″ | -154 |
| 3-1/16″ | 15,000 | 11-5/16″ | 8 | 1-1/8″ | 8″ | -154 |
| 3-1/16″ | 20,000 | 14-1/16″ | 8 | 1-3/8″ | 10-3/4″ | -154 |
| 4-1/16″ | 2,000 | 10-3/4″ | 8 | 7/8″ | 6-1/4″ | R-37 |
| 4-1/16″ | 3,000 | 11-1/2″ | 8 | 1-1/8″ | 7-1/2″ | R-37 |
| 4-1/16″ | 5,000 | 12-1/4″ | 8 | 1-1/8″ | 8-3/8″ | -155 |
| 4-1/16″ | 20,000 | 17-9/16″ | 8 | 1-3/4″ | 12-3/4″ | -155 |
| 5-1/8″ | 5,000 | 14-3/4″ | 8 | 1-1/2″ | 10-3/4″ | R-44 |
| 7-1/16″ | 2,000 | 14″ | 12 | 1″ | 7-1/2″ | R-45 |
| 7-1/16″ | 3,000 | 15″ | 12 | 1-1/8″ | 8-1/2″ | R-45 |
| 7-1/16″ | 5,000 | 15-1/2″ | 12 | 1-3/8″ | 11-1/4″ | R-46 |
| 7-1/16″ | 10,000 | 18-7/8″ | 12 | 1-1/2″ | 11-3/4″ | -156 |
| 7-1/16″ | 15,000 | 19-7/8″ | 16 | 1-1/2″ | 13″ | -156 |
| 7-1/16″ | 20,000 | 24-13/16″ | 16 | 2″ | 17-3/4″ | -156 |
| 9″ | 2,000 | 16-1/2″ | 12 | 1-1/8″ | 8-1/2″ | R-49 |
| 9″ | 3,000 | 18-1/2″ | 12 | 1-3/8″ | 9-1/2″ | R-49 |
| 9″ | 5,000″ | 19″ | 12 | 1-5/8″ | 12-1/2″ | R-50 |
| 9″ | 10,000 | 21-3/4″ | 16 | 1-1/2″ | 13-1/4″ | -157 |
| 9″ | 15,000 | 25-1/2″ | 16 | 1-7/8″ | 16″ | -157 |
| 11″ | 2,000 | 20″ | 16 | 1-1/4″ | 9-1/4″ | R-53 |
| 11″ | 3,000 | 21-1/2″ | 16 | 1-3/8″ | 10″ | R-53 |
| 11″ | 5,000 | 23″ | 12 | 1-7/8″ | 14-1/4″ | R-54 |
| 11″ | 10,000 | 25-3/4″ | 16 | 1-3/4″ | 15-3/8″ | -158 |
| 11″ | 15,000 | 32″ | 20 | 2″ | 19-1/2″ | -158 |
| 13-5/8″ | 2,000 | 22″ | 20 | 1-1/4″ | 9-1/2″ | R-57 |
| 13-5/8″ | 3,000 | 24″ | 20 | 1-3/8″ | 10-3/4″ | R-57 |
| 13-5/8″ | 5,000 | 26-1/2″ | 16 | 1-5/8″ | 12-3/4″ | -160 |
| 13-5/8″ | 10,000 | 30-1/4″ | 20 | 1-7/8″ | 17-3/4″ | -159 |
| 13-5/8″ | 15,000 | 34-7/8″ | 20 | 2-1/4″ | 21″ | -159 |
| 16-3/4″ | 2,000 | 27″ | 20 | 1-1/2″ | 10-3/4″ | R-65 |
| 16-3/4″ | 3,000 | 27-3/4″ | 20 | 1-5/8″ | 12-1/4″ | R-66 |
| 16-3/4″ | 5,000 | 30-3/8″ | 16 | 1-78″ | 14-3/4″ | -162 |
| 16-3/4″ | 10,000 | 34-5/16″ | 24 | 1-7/8″ | 17-3/4″ | -162 |
| 18-3/4″ | 5,000 | 35-5/8″ | 20 | 2″ | 18″ | -163 |
| 16-3/4″ | 10,000 | 40-15/16″ | 24 | 2-1/4″ | 23″ | -164 |
| 20-3/4″ | 3,000 | 33-3/4″ | 20 | 2″ | 15-1/4″ | R-74 |
| 21-1/4″ | 2,000 | 32″ | 24 | 1-5/8″ | 12-1/2″ | R-73 |
| 21-1/4″ | 5,000 | 39″ | 24 | 2″ | 19″ | -165 |
| 21-1/4″ | 10,000 | 45″ | 24 | 2-1/2″ | 24-3/4″ | -166 |
| 26-3/4″ | 2,000 | 41″ | 20 | 1-3/4″ | 14-1/4″ | -167 |
| 21-1/4″ | 3,000 | 43-3/8″ | 24 | 2″ | 17-1/2″ | -168 |

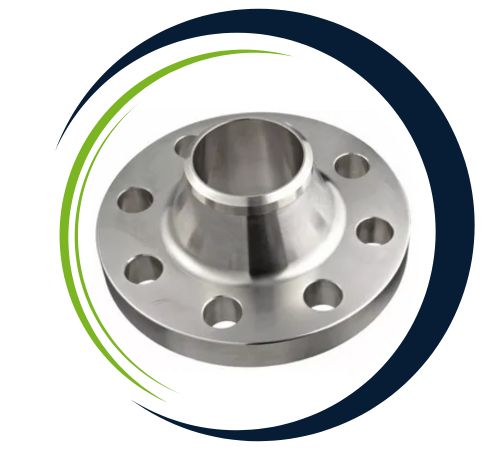

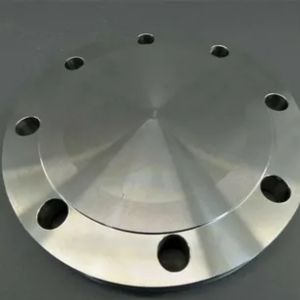

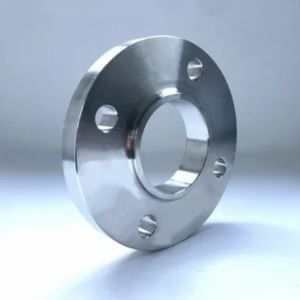

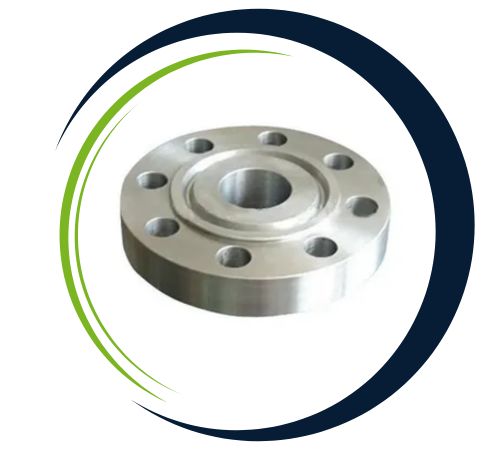

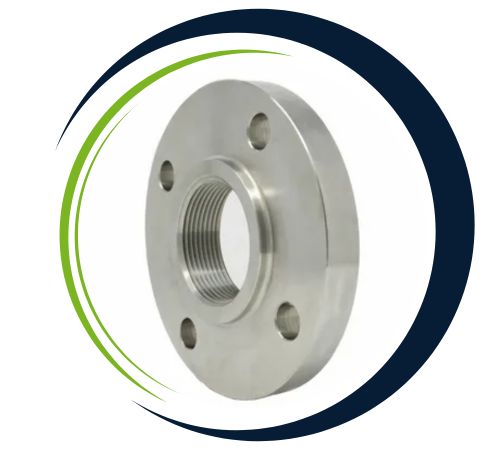

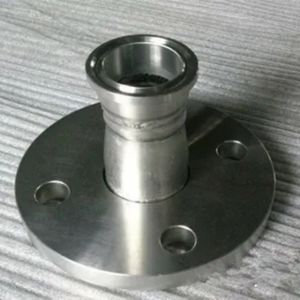

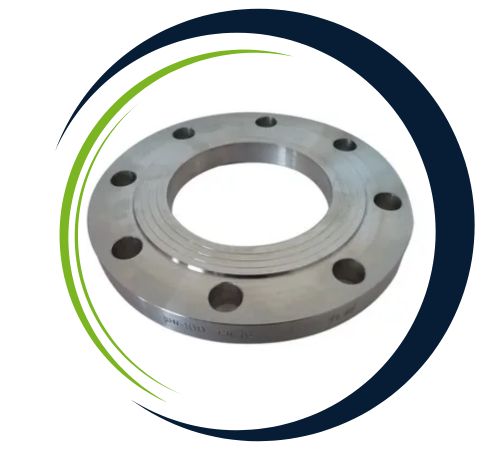

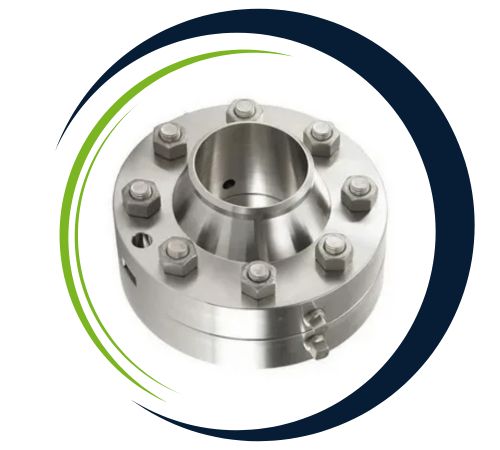

Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of API 6BX Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
API 6BX Flanges are widely used in the oil and gas industry, particularly in high-pressure applications such as wellhead systems, subsea equipment, and offshore drilling rigs. These flanges provide reliable, leak-proof connections for critical components like valves, pressure control systems, and pipelines. Designed to withstand extreme pressure (up to 20,000 psi or more), they are essential for ensuring safety and integrity in oilfield operations. API 6BX Flanges are also used in high-temperature environments and corrosive settings, ensuring long-term performance in demanding conditions.
Yes, we offer custom sizes for API 6BX Flange to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
| Weld Neck, Integral, Blinds, Equivalent | |||
| Maximam Working Pressure | 2000 PSI | 3000 PSI | 5000 PSI |
| Test Pressure | PSI 3000 | PSI 4500 | PSI 7500 |
| Product Spec Levels | 1, 2, 3 and 4 | 1, 2, 3 and 4 | 1, 2, 3 and 4 |
| API Temperature Rating | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) |
| Integral, BLRF, Target BLRF and Test Flanges | |||
| Minimam Yield | 60 000 PSI | 60 000 PSI | 60 000 PSI |
| Minimam Tensile | 85 000 PSI | 85 000 PSI | 85 000 PSI |
| Material | API 60K | API 60K | API 60K |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
