Located in the industrial heart of Safat, Kuwait, Shiraz Flanges has built a reputation as a trusted partner for demanding industrial applications. We specialize in providing robust and reliable solutions, with a particular focus on high-performance Incoloy 800, 800H, and 800HT flanges. Our commitment is to deliver components that not only meet but exceed the stringent demands of our clients, ensuring unmatched durability and performance in the most challenging environments, backed by our local expertise and global standards of quality.
The strength of these flanges lies in their specific composition, which is a careful balance of nickel, iron, and chromium, enhanced with additions of aluminum and titanium. This sophisticated alloy is engineered for exceptional mechanical properties, offering superior tensile strength and impressive creep-rupture strength, especially in the 800H and 800HT grades. This means they maintain their integrity and resist deformation under extreme temperatures and constant stress, providing a reliable, long-lasting solution for critical systems.
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

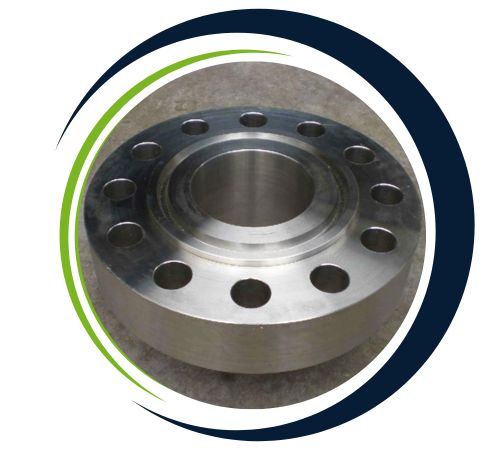

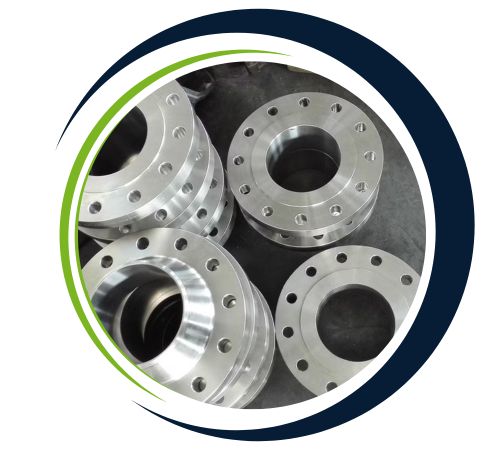

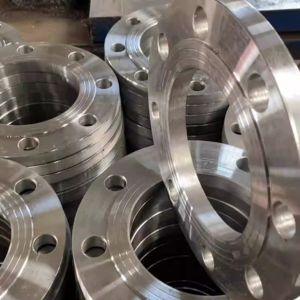

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

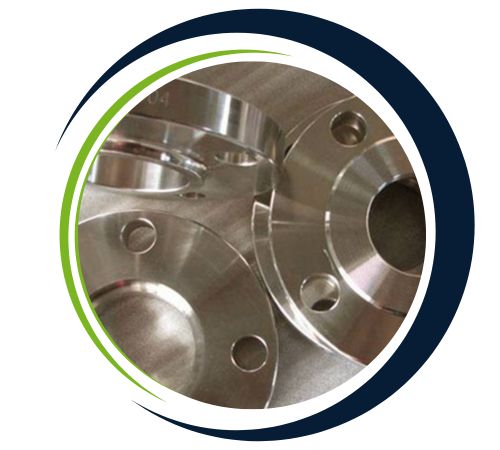

Type : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.

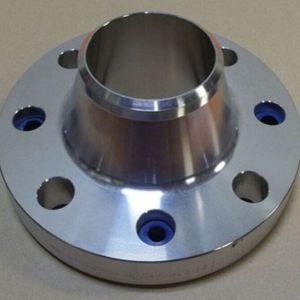

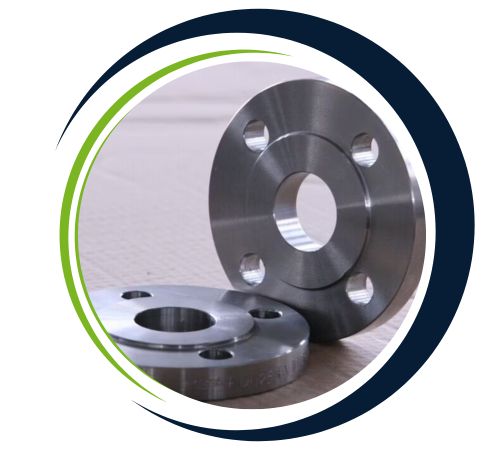

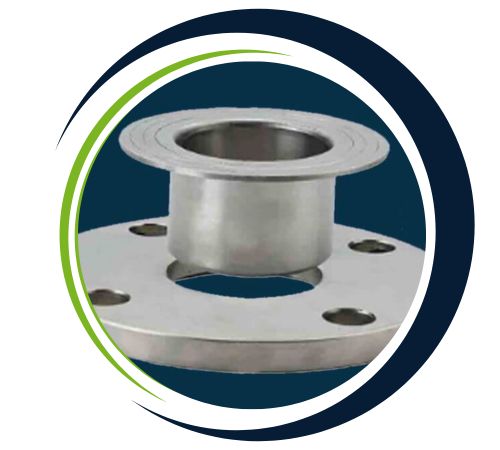

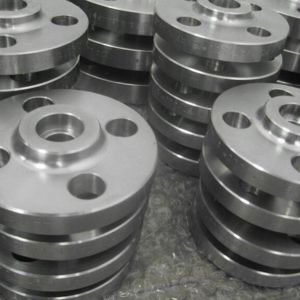

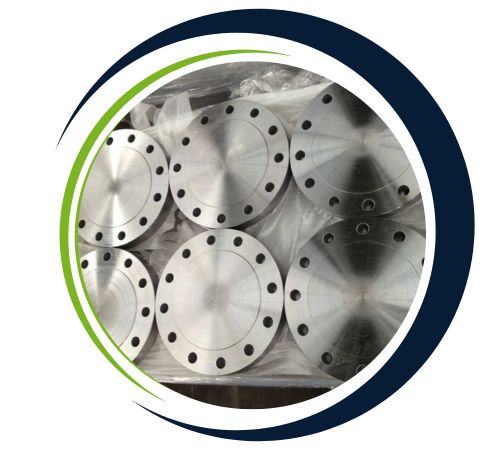

Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of Incoloy 800/800H/800HT Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800, 800H and 800HT flanges are used extensively in high-temperature and hot environment applications. Their superior oxidation and carburization resistance makes them best suited for furnace parts, heat exchangers and petrochemical processes. In electrical power generation, these flanges are employed in reheaters and superheaters, where stability at high temperatures is necessary. Furthermore, they find application in chemical and nuclear plants, with equipment being exposed to acid and sulfur environments. Their strength and resistance to thermal stresses guarantee durability in sophisticated applications involving long-term usage.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Yes, we offer custom sizes for Incoloy 800/800H/800HT Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
