Welcome to Shiraz Flanges, your trusted partner in Safat, Kuwait, for superior industrial connections. We take pride in manufacturing and supplying high-quality Stainless Steel 304 Flanges, crafted to meet the most demanding specifications. Known for their reliability and exceptional performance, our flanges are the cornerstone of robust piping systems across various industries. When you choose us, you are selecting a product backed by expertise and a commitment to durability that stands the test of time in Kuwait’s challenging industrial environment.
Stainless Steel 304 is an excellent Austenitic grade, primarily composed of chromium and nickel, which gives it a fantastic balance of strength and workability. This combination allows the flanges to be easily welded and formed without compromising their integrity. They boast impressive mechanical properties, including high tensile strength and excellent impact resistance, even at fluctuating temperatures. This inherent toughness makes them resistant to corrosion and oxidation, ensuring they hold up beautifully under pressure in a wide array of settings.
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard s | ANSI, ASME, BS, DIN, EN etc. |

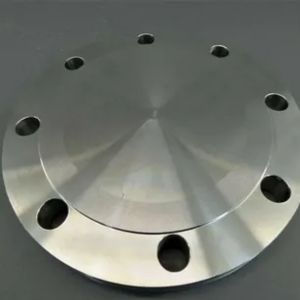

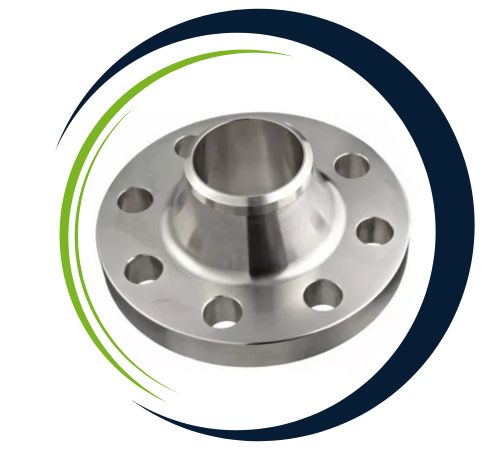

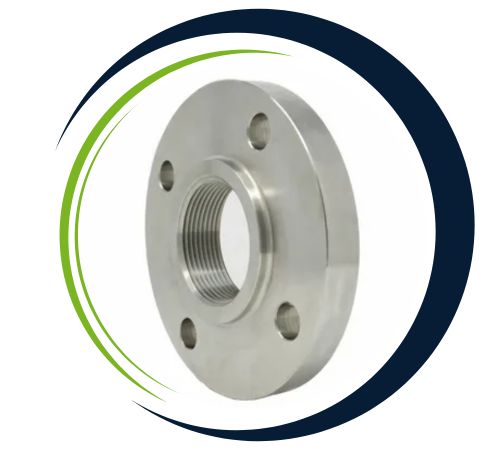

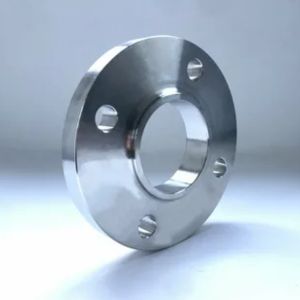

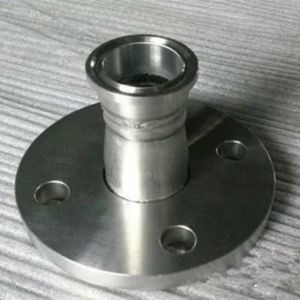

Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of Stainless Steel 304 flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304 flanges are widely used across various industries due to their exceptional corrosion resistance, durability, and ease of fabrication. Commonly applied in piping systems, they connect pipes, valves, pumps, and other equipment, ensuring leak-free operation in high- and low-temperature environments. Their versatility makes them suitable for the chemical, petrochemical, and oil and gas industries, as well as food processing and pharmaceuticals, where sanitation and hygiene are critical. Additionally, they perform well in marine applications due to their resistance to rust and corrosion.
| NPS (in.) | Stainless Steel 304 Flanges Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) | No. of Bolts | Dia. of Bolts (in.) | Dia. of Bolt Holes (in.) | Bolt Circle (in.) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Yes, we offer custom sizes for Stainless Steel 304 flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
