Based in the industrial heart of Safat, Kuwait, Shiraz Flanges has built a reputation for reliability and precision as a leading manufacturer and supplier of critical piping components. Our expertise shines in our production of the P250gh flange, a component engineered for demanding environments. We understand that the integrity of your systems is paramount, which is why we commit to rigorous quality control from raw material to finished product, ensuring every flange we deliver meets the highest standards of performance and safety for projects across the region and beyond.
The P250gh grade is specifically formulated for high-pressure and high-temperature service. Its composition, primarily carbon and manganese with carefully controlled trace elements, provides an excellent balance of strength and durability. This translates into robust mechanical properties, including high tensile strength and good yield strength, allowing these flanges to withstand significant internal pressures and mechanical stress without deforming. This inherent toughness makes them a dependable choice for maintaining system integrity under challenging operating conditions.

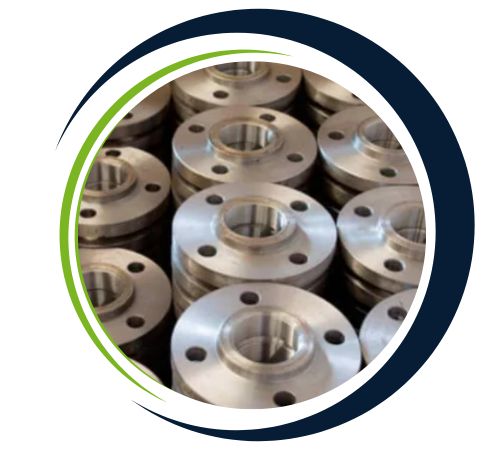

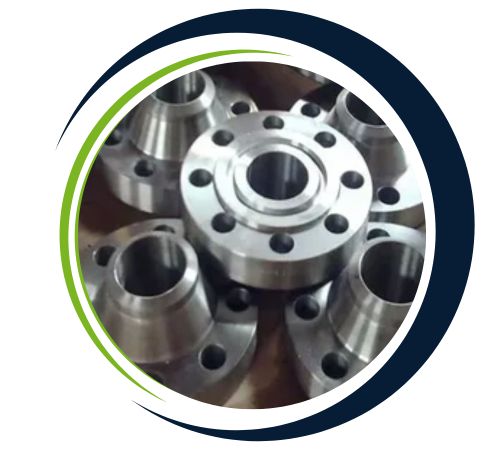

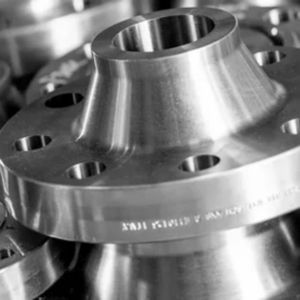

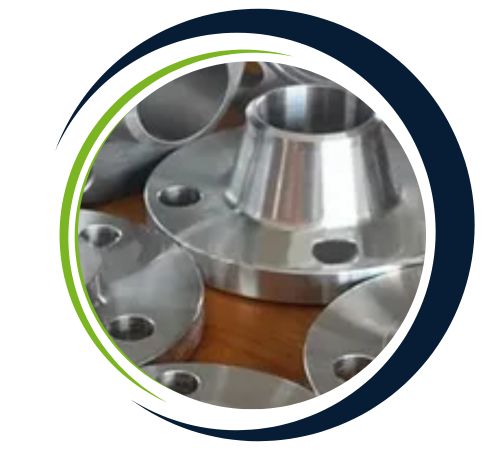

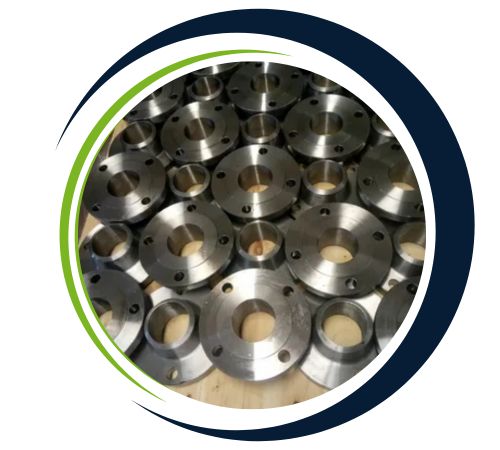

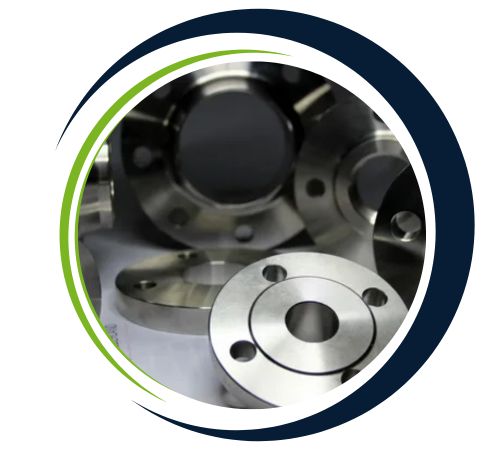

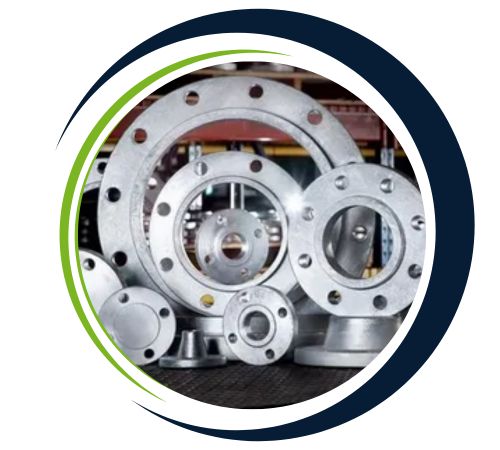

Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of P250gh Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2 inch (15 Nominal Bore) to 48 Inch (1200 Nominal Bore) |
|---|---|
| Pressure Rating ANSI | Class 600, 900, 150, 2500, 300, 1500 LBS |
| Pressure Calculation in DIN | 16, 6, 25, 40, 10 Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS Standards | 5, 10, 16 20, 30, 40, 63 K |
| UNI Standards | 6, 10, 16, 25, 40 Bar |
| EN Standards | 6, 10, 16, 25, 40 Bar |
| Coating | Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated,Oil Black Paint, Yellow Transparent |
| Most common types | Screwed, Forged, Threaded, Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report , 100% Radiography Test Report etc |
| Production technique | Forged, Heat treated and machined |
| Flange Face Type | Small Tongue, Lap-Joint Face, Raised Face, Ring Type Joint, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Test | Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Direct-reading Spectrograph, Magnetic particle detector |
| Equipment | Bending machine, Sand-blasting machine, Pushing Machine,Press machine, electric bevelling machine etc |
| Carbon | Silicon | Manganese | Nickel | Phosphorus | Sulfur | Chromium | Vanadium | niobium | Titanium | Aluminum | – |
| 0.18 – 0.23 | max 0.4 | 0.3 – 0.9 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.02 | max 0.01 | max 0.03 | 0.015 – 0.05 | Cr+Cu+Mo+Ni < 0.7 |
| Nominal thickness (mm): | to 150 | ||
| Rm – Tensile strength (MPa) (+N) | 410-540 | ||
| Nominal thickness (mm): | to 50 | 50 – 100 | 100 – 150 |
| ReH – Minimum yield strength (MPa) (+N) | 250 | 240 | 230 |
| KV – Impact energy (J) longitud., | +20° 47 | ||
| Nominal thickness (mm): | to 150 | ||
| A – Min. elongation at fracture (%) (+N) | 25 |
P250GH flanges are widely used in industries that require durable, high-temperature, and high-pressure-resistant components. Commonly applied in power generation, oil and gas, chemical processing, and petrochemical industries, these flanges are essential in pipelines, boilers, and pressure vessels. Their excellent weldability and resistance to heat make them suitable for securely connecting pipes, valves, pumps, and other equipment. P250GH flanges are particularly valued in applications where strength, resilience, and reliable performance under extreme conditions are critical, ensuring safety and efficiency in industrial systems.
Yes, we offer custom sizes for P250gh Flange to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
