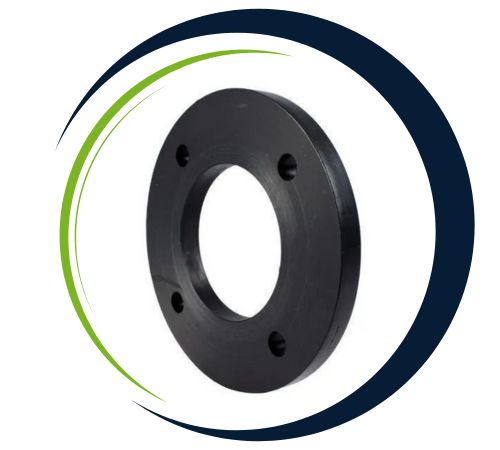

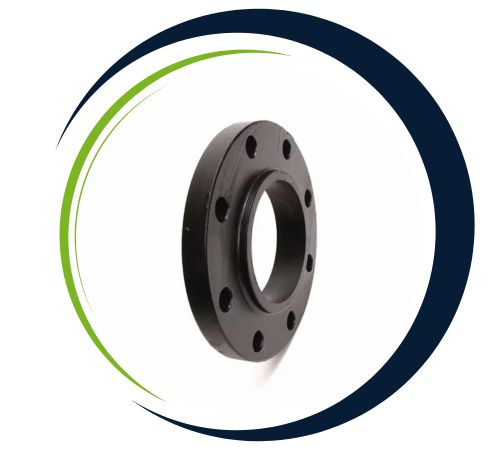

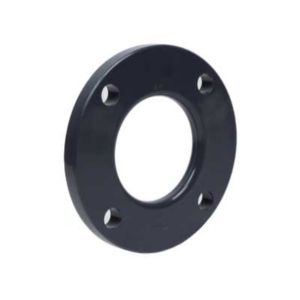

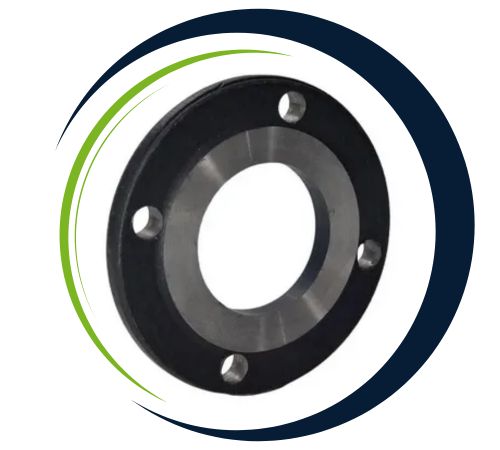

Situated in the industrial heart of Safat, Kuwait, Shiraz Flanges has built a reputation as a trusted partner in the supply and manufacture of robust industrial components. Our specialization lies in carbon steel plate flanges, which are engineered to meet the rigorous demands of various sectors. We understand that reliability is non-negotiable in pipeline systems, which is why we focus on delivering products that combine exceptional strength with precise manufacturing, ensuring seamless integration and long-term performance for our clients’ most critical projects.
The composition of our carbon steel plate flanges is primarily iron and carbon, with carefully controlled additions of manganese and other elements to enhance performance. This specific formulation is key to achieving outstanding mechanical properties, including high tensile strength and excellent impact resistance. These flanges are designed to withstand significant pressure and temperature fluctuations, offering a dependable solution that maintains its integrity under demanding operational conditions, ensuring the safety and efficiency of your systems.
Standards : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size: 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

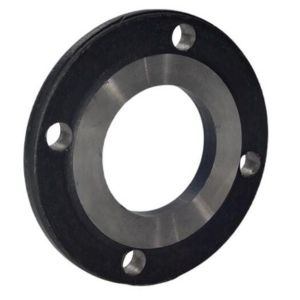

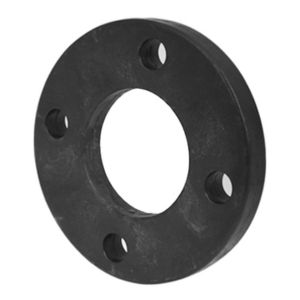

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Carbon Plate Flanges: ASTM A182 F304, F304L, F310, F316, F316L, F317, F317L

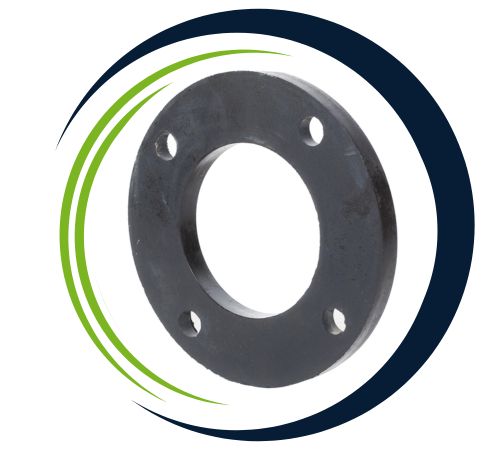

Carbon Steel Plate Flanges: ASTM A105/A105N, A694 F42, F46, F52, F60, F65, F70, A516.60, 65, 70

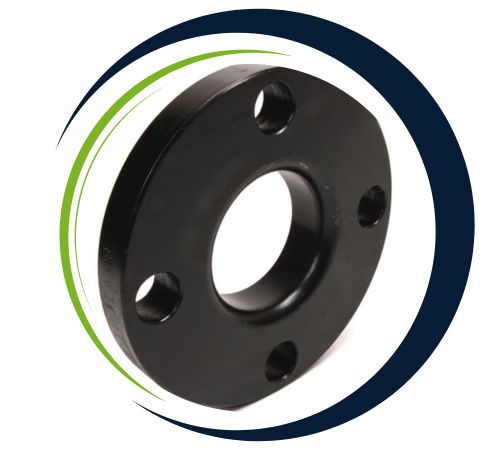

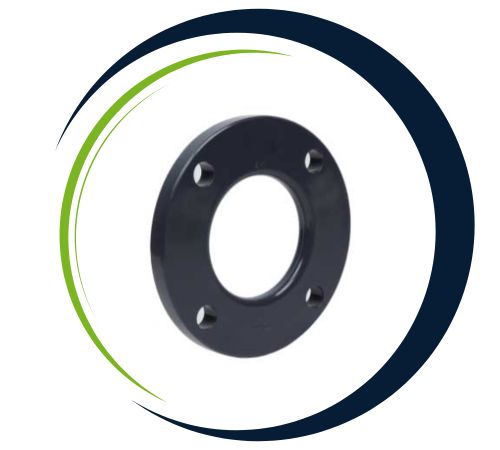

Low Temperature Carbon Steel Plate Flanges: ASTM A350, LF1, LF2 CL1/CL2, LF3 CL1/CL2
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100%
Shiraz Flanges, a premier supplier in Safat, Kuwait, specializes in high-quality Carbon Steel Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Carbon steel plate flanges are widely used in oil and gas, petrochemical and power generation and water treatment applications. They provide a safe connection between piping and valves and equipment, ensuring that leak-tight joints are under high pressure. These flanges are suitable for temperature and pressure drops due to their durability and low cost. Commonly found in pipeline systems, it facilitates joining, disassembly and maintenance. In addition, its corrosion resistance makes it ideal for industrial applications that require strength and reliability.
| Nominal Size Thickness (inches) | Weight (lb/ft2) |
|---|---|
| 3/16 | 7.65 |
| 1/4 | 10.2 |
| 5/16 | 12.8 |
| 3/8 | 15.3 |
| 7/16 | 17.9 |
| 1/2 | 20.4 |
| 9/16 | 22.9 |
| 5/8 | 25.5 |
| 11/16 | 28.1 |
| 3/4 | 30.6 |
| 13/16 | 33.2 |
| 7/8 | 35.7 |
| 1 | 40.8 |
| 1 1/8 | 45.9 |
| 1 1/4 | 51.0 |
| 1 3/8 | 56.1 |
| 1 1/2 | 61.2 |
| 1 5/8 | 66.3 |
| 1 3/4 | 71.4 |
| 1 7/8 | 76.5 |
| 2 | 81.6 |
| 2 1/8 | 86.7 |
| Plate Diameter | Pipes | PN 16 Plate Flange | Screws/Thread | Weight In KG | |||||
|---|---|---|---|---|---|---|---|---|---|
| (d1) | (k) | (D) | (b) | (d2) | (Thread) | (Flange Bolt holes) | (Kilogram) | ||
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
| 80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
| 100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
| 125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
| 150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
| 200 | 219,1 | 221,5 | 310 | 360 | 32 | 26 | M24 | 12 | 14,245 |
| 250 | 273,0 | 276,5 | 370 | 425 | 35 | 30 | M27 | 12 | 20,087 |
| 300 | 323,9 | 327,5 | 430 | 485 | 38 | 30 | M27 | 16 | 26,526 |
| 350 | 355,6 | 359,5 | 490 | 555 | 42 | 33 | M30 | 16 | 41,656 |
| 400 | 406,4 | 411,0 | 550 | 620 | 48 | 36 | M33 | 16 | 57,456 |
| 450 | 457,0 | 462,0 | 600 | 670 | 54 | 36 | M33 | 20 | 69,548 |
| 500 | 508,0 | 513,5 | 660 | 730 | 58 | 36 | M33 | 20 | 86,736 |
| 600 | 610,0 | 616,5 | 770 | 845 | 68 | 39 | M36 | 20 | 126,866 |
| 700 | 711,2 | 714,0 | 875 | 960 | 85 | 42 | M39 | 24 | 193,031 |
| 800 | 812,8 | 816,0 | 990 | 1085 | 95 | 48 | M45 | 24 | 266,311 |
Yes, we offer custom sizes for Carbon Steel Plate Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
