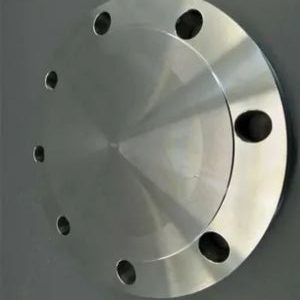

Nestled in the industrial heart of Safat, Kuwait, Shiraz Flanges stands as a dedicated manufacturer and supplier, with a specialized focus on delivering high-quality pipeline components. Among our standout products are the meticulously crafted DIN 2527 PN40 Blind Flanges. These essential components are engineered to provide exceptional sealing solutions for piping systems requiring temporary or permanent termination. We take pride in offering flanges that are built to withstand demanding conditions, ensuring safety and reliability for a wide array of industrial applications.
Constructed to the rigorous DIN 2527 standard, these PN40 blind flanges are manufactured from premium materials, typically carbon or stainless steel. They are designed to withstand pressures up to 40 bar, making them suitable for demanding environments. The composition is carefully controlled to ensure excellent strength and durability, while the mechanical properties guarantee a leak-proof seal and robust performance, ensuring they can handle the stresses and pressures they will encounter in service.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| DIN 2527 PN40 (in mm) | ||||||
| Nominal Pipe Size | Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of | Dia of Bolt Holes | |
| DIN | D | B | K | holes | D2 | KG |
| 10 | 90 | 16 | 60 | 4 | 14 | 0.72 |
| 15 | 95 | 16 | 65 | 4 | 14 | 0.81 |
| 20 | 105 | 18 | 75 | 4 | 14 | 1.14 |
| 25 | 115 | 18 | 85 | 4 | 14 | 1.38 |
| 32 | 140 | 18 | 100 | 4 | 18 | 2.03 |
| 40 | 150 | 18 | 110 | 4 | 18 | 2.35 |
| 50 | 165 | 20 | 125 | 4 | 18 | 3.20 |
| 65 | 185 | 22 | 145 | 8 | 18 | 4.29 |
| 80 | 200 | 24 | 160 | 8 | 18 | 5.54 |
| 100 | 235 | 24 | 190 | 8 | 22 | 7.60 |
| 125 | 270 | 26 | 220 | 8 | 26 | 10.82 |
| 150 | 300 | 28 | 250 | 8 | 26 | 14.60 |
| 175 | 350 | 32 | 295 | 12 | 30 | 22.04 |
| 200 | 375 | 34 | 320 | 12 | 30 | 27.21 |
| 250 | 450 | 38 | 385 | 12 | 33 | 44.38 |
| 300 | 515 | 42 | 450 | 16 | 33 | 64.17 |
| 350 | 580 | 46 | 510 | 16 | 36 | 89.52 |
| 400 | 660 | 50 | 585 | 16 | 39 | 126.76 |
| 500 | 755 | 56 | 670 | 20 | 42 | 184.63 |
| 600 | 890 | 62 | 795 | 20 | 48 | 285.17 |
| 700 | 995 | 64 | 900 | 24 | 48 | 368.83 |
| 800 | 1140 | 70 | 1030 | 24 | 56 | 528.39 |
| 900 | 1250 | 76 | 1140 | 28 | 56 | 690.99 |
| 1000 | 1360 | 84 | 1250 | 28 | 56 | 912.42 |
Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of DIN 2527 PN40 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN40 Blind Flanges are primarily used to seal the ends of pipelines, valves, and pressure vessels in high-pressure systems. They are crucial in industries such as oil and gas, petrochemical, chemical processing, and water treatment, where they help isolate sections of pipelines during maintenance, repairs, or system modifications. These flanges provide reliable, leak-proof closures, ensuring the integrity and safety of the system. Their high strength and durability make them ideal for applications that require secure sealing in demanding, high-pressure environments.
Yes, we offer custom sizes for DIN 2527 PN40 Blind Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2527 PN40 Blind Pipe Flanges Wholesaler | DIN 2527 PN40 BLRF Flanges Supplier |
| Carbon Steel Raised Face DIN 2527 PN40 Blind Flange Stockist | Duplex Steel DIN 2527 PN40 BLRF Flanges Supplier in Al Ahmadi |
| Stainless Steel DIN 2527 PN40 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN40 Blind Flanges |
| DIN 2527 PN40 Large Diameter Blind Flange | 30 Inch DIN 2527 PN40 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN40 Blind Flange Dealer | Raised Face DIN 2527 PN40 Blind Flanges Manufacturer |
| DIN 2527 PN40 Blind Pipe Flanges Supplier in Safat | Duplex Steel DIN 2527 PN40 Blind Flanges |
| 4 inch Stainless Steel DIN 2527 PN40 Blind Flange | DIN 2527 PN40 Blind RF Flanges Stockholder |
| Carbon Steel DIN 2527 PN40 Blind Flange | DIN 2527 PN40 Blind RF Flange Supplier |
| Alloy Steel DIN 2527 PN40 Blind Flanges | Copper Nickel DIN 2527 PN40 Blind Flanges at Best Price |
| DIN 2527 PN40 Blind Flange Dimensions | Raised Face DIN 2527 PN40 Blind Flange Manufacturer |
| Raised Face DIN 2527 PN40 Blind Plate Flanges | Titanium DIN 2527 PN40 Blind Flanges |
| Nickel Alloy DIN 2527 PN40 Blind Flange | Mild Steel DIN 2527 PN40 Blind Flange |
| DIN 2527 PN40 BLRF Flanges Distributor in Safat | Flat Face DIN 2527 PN40 Blind Flanges Exporter |
| DIN 2527 PN40 BLRF Flange Stockist in Kuwait | Raised Faced DIN 2527 PN40 Slip-On flanges Dealer in Kuwait |
| 18 inch DIN 2527 PN40 Carbon Steel Blind Flange | DIN 2527 PN40 Blind Flange Dimensions in mm |
| DIN 2527 PN40 Blind Flanges Supplier in Jahra | MS DIN 2527 PN40 Blind Flange |
| 8 Inch DIN 2527 PN40 Blind Pipe Flanges | DIN 2527 PN40 Blind Flanges Stockist |
| DIN 2527 PN40 BLRF Flanges Supplier in Hawalli | Alloy Steel DIN 2527 PN40 Blind Flanges Manufacturer in Kuwait |
| ASME SA105N Raised Faced DIN 2527 PN40 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN40 Blind Flange |
| German Standard DIN 2527 PN40 Blind Flanges | DIN 2527 PN40 Blind Flange Supplier in Kuwait |
| DIN 2527 PN40 Blind FF Flange Supplier | Suppliers of DIN 2527 PN40 Blind Flange |
| DIN 2527 PN40 Blind Flange Manufacturer | Flat Face DIN 2527 PN40 Blind Flange Manufacturer |
| DIN 2527 PN40 BLRF Flange Exporter | DIN 2527 PN40 Blind Flange Pressure Ratings |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
