Situated in the industrial heart of Safat, Kuwait, Shiraz Flanges has built a strong reputation for reliability and precision in the pipe fabrication industry. We specialize in manufacturing and supplying high-quality DIN 2632 PN10 Weld Neck Flanges, products known for their robustness and critical role in creating secure, leak-proof piping systems. Our commitment extends beyond mere supply, focusing on providing our clients with components that ensure long-term operational integrity and safety, backed by our local expertise and dedication to meeting the specific demands of the regional market.
Crafted to meet stringent standards, these flanges are typically made from durable carbon steel grades like S235JR, ensuring excellent strength and weldability. The PN10 pressure rating signifies a solid capacity for handling systems up to 10 bar, while the elongated neck is meticulously designed for a smooth transition and optimal stress distribution when welded to the pipe. This precise composition and design guarantee strong mechanical properties, including high tensile strength and excellent impact resistance, making them a dependable choice for demanding industrial environments.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2632 welding neck flanges; nominal pressure 10 |
||||||||||||||||
|
Brides à souder à collerette DIN 2632: pression nominale 10 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 8 | M 20 | 22 | 11,3 |
| 250 | – | 267 | 395 | 26 | 350 | 68 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 20 | 22 | 14,7 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 445 | 26 | 400 | 68 | 344 | 7,1 | 12 | 16 | 370 | 4 | 12 | M 20 | 22 | 17,4 |
| 350 | 355,6 | – | 505 | 26 | 460 | 68 | 385 | 7,1 | 12 | 16 | 430 | 4 | 16 | M 20 | 22 | 23,6 |
| – | 368 | 21,6 | ||||||||||||||
| 400 | 406,4 | – | 565 | 26 | 515 | 72 | 440 | 7,1 | 12 | 16 | 482 | 4 | 16 | M 24 | 26 | 28,6 |
| – | 419 | 26,2 | ||||||||||||||
| (450) | 457 | – | 615 | 28 | 565 | 72 | 488 | 7,1 | 12 | 16 | 532 | 4 | 20 | M 24 | 26 | 31,5 |
| 500 | 508 | – | 670 | 28 | 620 | 75 | 542 | 7,1 | 12 | 16 | 585 | 4 | 20 | M 24 | 26 | 38,1 |
| 600 | 610 | – | 780 | 28 | 725 | 80 | 642 | 7,1 | 12 | 18 | 685 | 5 | 20 | M 27 | 30 | 44,6 |
| 700 | 711 | – | 895 | 30 | 840 | 80 | 745 | 8 | 12 | 18 | 800 | 5 | 24 | M 27 | 30 | 62,4 |
| 800 | 813 | – | 1015 | 32 | 950 | 90 | 850 | 8 | 12 | 18 | 905 | 5 | 24 | M 30 | 33 | 84,1 |
| 900 | 914 | – | 1115 | 34 | 1050 | 95 | 950 | 10 | 12 | 20 | 1005 | 5 | 28 | M 30 | 33 | 98,5 |
| 1000 | 1016 | – | 1230 | 34 | 1160 | 95 | 1052 | 10 | 16 | 20 | 1110 | 5 | 28 | M 33 | 36 | 115 |
Shiraz Flanges, a leading supplier in Safat, Kuwait, offers an extensive selection of DIN 2632 PN10 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2632 PN10 Weld Neck Flanges are widely used in low to medium-pressure piping systems across industries such as oil and gas, petrochemicals, water treatment, and HVAC. These flanges provide secure, leak-proof connections between pipes, valves, and other equipment, ensuring system reliability. Their weld neck design minimizes stress at the connection points, making them ideal for applications with mild temperature and pressure fluctuations. Commonly used in pipelines and process systems, these flanges offer enhanced stability and alignment, helping maintain smooth operation and system integrity in critical applications.
Yes, we offer custom sizes for DIN 2632 PN10 Weld Neck Flanges to meet specific project needs. Our team at Shiraz Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shirazflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| 18 inch DIN 2632 PN10 Carbon Steel Weld Neck Flange | DIN 2632 PN10 Weld Neck Flange Dimensions in mm |

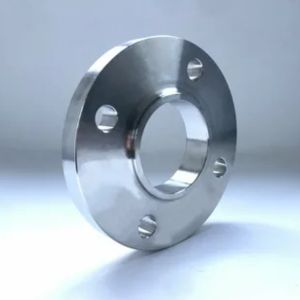

| Alloy Steel DIN 2632 PN10 Welding Neck Flanges | Copper Nickel DIN 2632 PN10 Weld Neck Flanges at Best Price |
| DIN 2632 PN10 Weld Neck Flange Dimensions | Raised Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 Welding Neck FF Flange Supplier | Suppliers of DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Weld Neck Pipe Flanges Wholesaler | DIN 2632 PN10 WNRF Flanges Supplier |
| 30 inch DIN 2632 PN10 Weld Neck Flange Dealer | Raised Face DIN 2632 PN10 Weld Neck Flanges Manufacturer |
| Nickel Alloy DIN 2632 PN10 Welding Neck Flange | Mild Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flange Stockist in Kuwait | Raised Faced DIN 2632 PN10 welding-neck flanges Dealer in Kuwait |
| Raised Face DIN 2632 PN10 Weld Neck Plate Flanges | Titanium DIN 2632 PN10 Welding Neck Flanges |
| German Standard DIN 2632 PN10 Weld Neck Flanges | DIN 2632 PN10 Weld Neck Flange Supplier in Kuwait |
| Stainless Steel DIN 2632 PN10 Weld Neck Flange | ASTM B564 Raised Faced DIN 2632 PN10 Weld Neck Flanges |
| DIN 2632 PN10 WNRF Flange Exporter | DIN 2632 PN10 Weld Neck Flange Pressure Ratings |
| DIN 2632 PN10 Weld Neck Flange Manufacturer | Flat Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 WNRF Flanges Supplier in Safat | Alloy Steel DIN 2632 PN10 Weld Neck Flanges Manufacturer in Kuwait |
| DIN 2632 PN10 Welding Neck Flanges Supplier in Salmiya | MS DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Large Diameter Weld Neck Flange | 30 Inch DIN 2632 PN10 Weld Neck Pipe Flange Dimensions |
| Carbon Steel Raised Face DIN 2632 PN10 Weld Neck Flange Stockist | Duplex Steel DIN 2632 PN10 WNRF Flanges Supplier in Jahra |
| ASME SA105N Raised Faced DIN 2632 PN10 Weld Neck Flanges | 18 inch Carbon Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flanges Distributor in Hawalli | Flat Face DIN 2632 PN10 Weld Neck Flanges Exporter |
| DIN 2632 PN10 Weld Neck Pipe Flanges Supplierin Jahra | Duplex Steel DIN 2632 PN10 Weld Neck Flanges |
| 8 Inch DIN 2632 PN10 Welding Neck Pipe Flanges | DIN 2632 PN10 Weld Neck Flanges Stockist |
| 4 inch Stainless Steel DIN 2632 PN10 Weld Neck Flange | DIN 2632 PN10 Weld Neck RF Flanges Stockholder |
| Carbon Steel DIN 2632 PN10 Welding Neck Flange | DIN 2632 PN10 Weld Neck RF Flange Supplier |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
